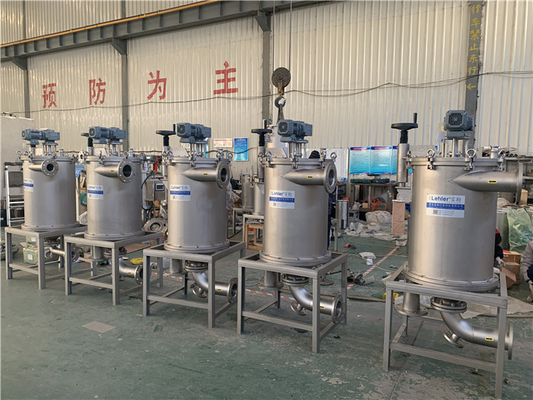

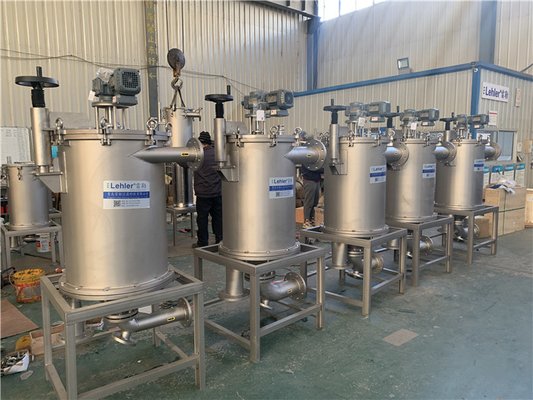

Flanged Inlet / Outlet Connection Automatic Self Cleaning External Scraping Filter Housing For Paper Mill Sizing

Flanged Inlet / Outlet Connection Automatic Self Cleaning External Scraping Filter Housing For Paper Mill Sizing
Flanged Inlet / Outlet Connection Automatic Self Cleaning External Scraping Filter Housing For Paper Mill Sizing
Flanged Inlet / Outlet Connection Automatic Self Cleaning External Scraping Filter Housing For Paper Mill Sizing Flanged Inlet / Outlet Connection Automatic Self Cleaning External Scraping Filter Housing For Paper Mill Sizing Flanged Inlet / Outlet Connection Automatic Self Cleaning External Scraping Filter Housing For Paper Mill Sizing

Large Image :  Flanged Inlet / Outlet Connection Automatic Self Cleaning External Scraping Filter Housing For Paper Mill Sizing

Product Details:
Place of Origin: QINGDAO
Brand Name: Lehler
Model Number: LFW-D219
Contact Now

Flanged Inlet / Outlet Connection Automatic Self Cleaning External Scraping Filter Housing For Paper Mill Sizing

Description
Slot Opening: 150 Microns Installation Type: Vertical/Horizontal
Inlet/Outlet Connection: Flanged/Threaded Brush: Metal Brush
Inlet: DN150 New Application: Sizing For Paper Mill
Surface Finish: Mirror Polish Power Box: EX-proof
Highlight:

External Scraping auto self cleaning filter

,

Sizing auto self cleaning filter

,

External Scraping automatic self cleaning filters

Flanged Inlet/Outlet Connection Automatic Self-cleaning external scraping filter housing for Paper Mill Sizing
Product Description




External Scraping Self-cleaning Filter
Lehler external scraping self-cleaning filter (LFW series filter) blends modern technology with simplicity to provide a versatile method of filtering your provide a versatile method of filtering your process fluids.The filter can be set up for fully or semi-automated or manual operation.
***Lehler External Scraping Self-cleaning Filter is suitable for High Viscosity and High Temperature liquids. And is capable of the filtration for liquids of viscosity up to 800000cps.***







Flanged Inlet / Outlet Connection Automatic Self Cleaning External Scraping Filter Housing For Paper Mill Sizing 0




Working principle
Liquid enters the filter body from inlet and flows through the filter element from inside to outside.Impurity is collected on the internal surface of the wedge wire element.The reducer motor drives scraper blade to remove the impurity continuously.Cleaning takes place without interruption to flow by the rotation of the element against fixed scraper blades.The impurity accumulated during rotation is deposited into the bottom on the filter body from where it can be periodically discharged automatically via the drain outlet.

Technical Features &Advantages


Flanged Inlet / Outlet Connection Automatic Self Cleaning External Scraping Filter Housing For Paper Mill Sizing 1
No disposable consumables:Save filter media cost and environment cost

Flanged Inlet / Outlet Connection Automatic Self Cleaning External Scraping Filter Housing For Paper Mill Sizing 2
Stainless steel structure:Variously materials, corrosion and rust prevention


Flanged Inlet / Outlet Connection Automatic Self Cleaning External Scraping Filter Housing For Paper Mill Sizing 3
High-precision slot opening: Min. Slot 20 microns.Suitable for high viscosity and high temperature liquids


Flanged Inlet / Outlet Connection Automatic Self Cleaning External Scraping Filter Housing For Paper Mill Sizing 4
High automation degree:Which can work on-line continuously,no manual cleaning frequently

Quality Control&Delivery

Productive Process


Flanged Inlet / Outlet Connection Automatic Self Cleaning External Scraping Filter Housing For Paper Mill Sizing 5


Specification

Product Model

Equipment Diameter

Equipment Height

Thickness

Filter Area

Slot

LFW-D219

250mm

700mm

3mm

0.2



Min. 0.02mm(20um)



LFW-D245

300mm

1000mm

4mm

0.3

LFW-D412

450mm

1100mm

6mm

0.7

LFW-D470

500mm

1300mm

6mm

1.5

LFW-D550

600mm

1500mm

6mm

2.0


Application


Flanged Inlet / Outlet Connection Automatic Self Cleaning External Scraping Filter Housing For Paper Mill Sizing 6

Exhibition


Flanged Inlet / Outlet Connection Automatic Self Cleaning External Scraping Filter Housing For Paper Mill Sizing 7


Flanged Inlet / Outlet Connection Automatic Self Cleaning External Scraping Filter Housing For Paper Mill Sizing 8

Plywood Case for Exporting Package


Flanged Inlet / Outlet Connection Automatic Self Cleaning External Scraping Filter Housing For Paper Mill Sizing 9

Certifications


Flanged Inlet / Outlet Connection Automatic Self Cleaning External Scraping Filter Housing For Paper Mill Sizing 10

Flanged Inlet / Outlet Connection Automatic Self Cleaning External Scraping Filter Housing For Paper Mill Sizing 11




Flanged Inlet / Outlet Connection Automatic Self Cleaning External Scraping Filter Housing For Paper Mill Sizing 12

Flanged Inlet / Outlet Connection Automatic Self Cleaning External Scraping Filter Housing For Paper Mill Sizing 13

Company Profile
